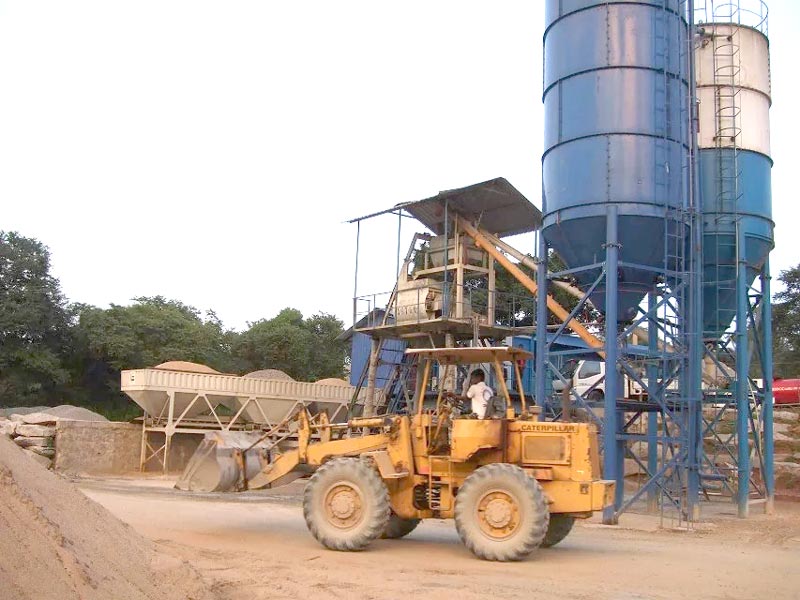

HZS35 series hopper lift type concrtete batching plant

This concrete mixing plant is composed of batching, measuring system, mixing system, electrical control system, image monitoring system, communication system and steal frame. It applies to large scale construction projects of road, bridge, dam, airport, sea port and other places having large demand of concrete, like commercial ready-mixed concrete of city.

Email: sale@piconcretemachine.com

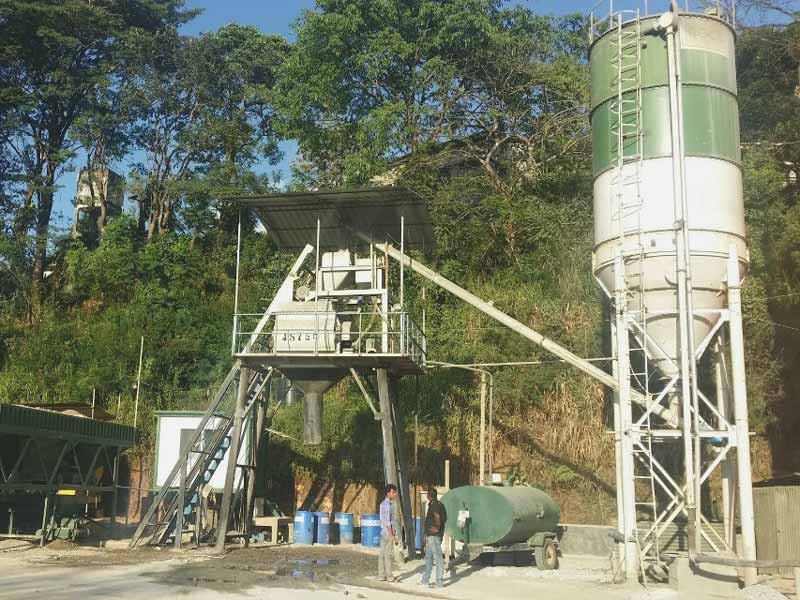

HZS35 series hopper lift type concrtete batching plant

Product introduction:

HZS series hopper lift type Concrete Batching Plant is developed by Zhengzhou Pioneer Machinery Co.,Ltd., which is a professional company engaged in manufacturing big, medium-sized construction machinery products. We adopt the world's complicated technologies, and have dedicated in manufacturing concrete mixing plant for many years. Meanwhile, we have earned a perfect reputations in the construction field.

Product features:

1. It applies to large scale construction projects city

2. Dosing of cement, water and additive measure by electronic scale

3. Electrical control system mainly adopts imported elements, functional, reliable and convenient.

Product application:

HZS series bucket lift concrete mixing plant is widely used in various large and medium-sized prefabrication plants, construction sites, roads, bridges, airports, tunnels and other projects.Commonly used in large and medium-sized water conservancy projects, electric power projects, highway bridges and other engineering projects with large concrete engineering quantities, long construction periods, and dense construction sites. It is also applicable to water conservancy, electric power, railway, highway, port and wharf, etc.

Product detail:

JS concrete mixer

JS Series Concrete mixer is double horizontal axle forced mixers can be used for dry and hard, damp-dry and plastic concrete as well as light aggregate concrete and different types of mortar.

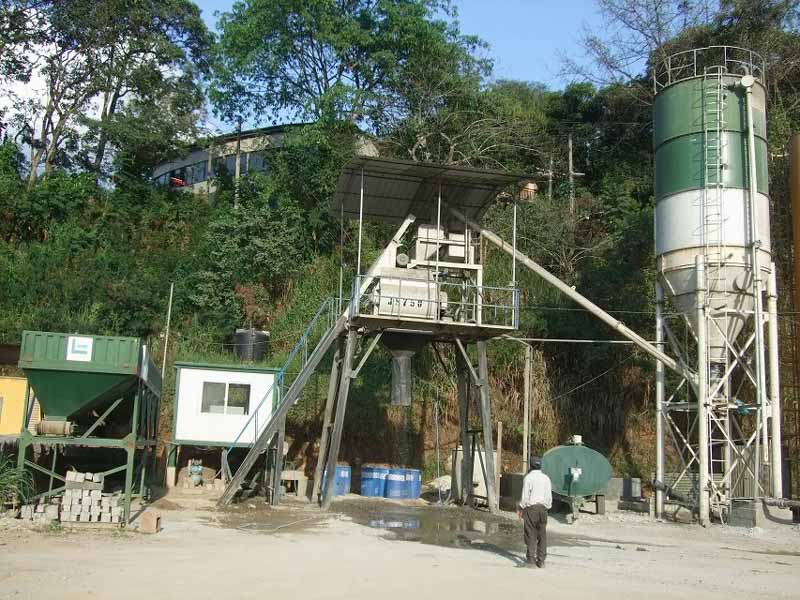

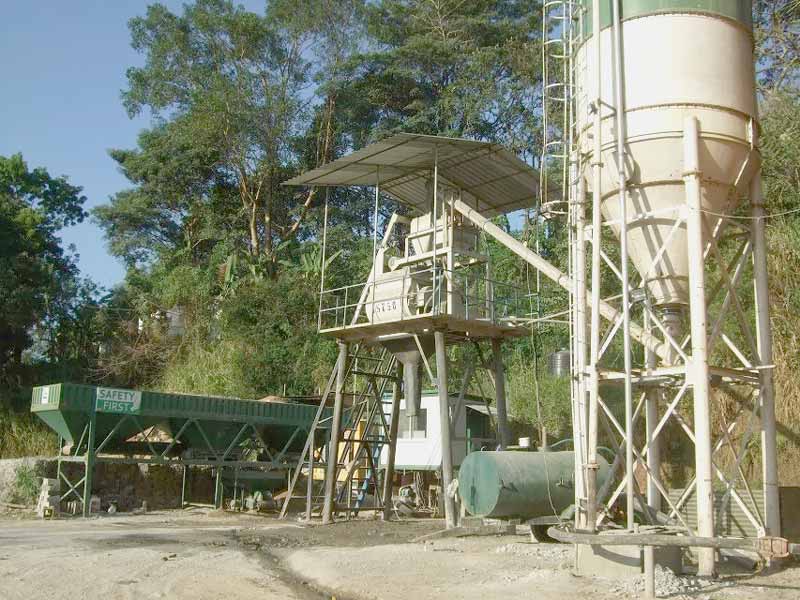

HZS35 series hopper lift type concrtete batching plant

Weighing system

The weighing system includes aggregate weighing.water weighing,cement weighing and additive weighing(optional)It is controlled by microcomputer, the weighing is highly accurate and full automatic.

Cement silo

We adopt very strong and thick cement silo which is split type, thus can largely save sea freight and it is easy to assembly at installation site abroad.There is level meter in the cement silo ,indicative-ing the cement level; the arc-breaking system guarantee the discharging fluently.

Automatic control system

The controlling is independently completed by PLC with high reliability. Adopted high-accuracy load indicator which is specially designed for industrial control it has the advantages of high reliability.high precision, high efficiency and anti-jamming.

Main Technical Parameters of the Top Machine:

Model		HZS25	HZS35	HZS50	HZS75	HZS100	HZS150
Productivity(m3/h)		25	35	50	75	100	150
Main Mixer	Main Mixer	JS500	JS750	JS1000	JS1500	JS2000	JS3000
	Mixing Power( kw)	18.5	30	37	2*30	2*37	2*55
	Output Capacity(m3)	0.5	0.75	1	1.5	2	3
	Max Aggregate Size(mm)	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80
Type of Batching plant		PDL800	PLD1200-Ⅱ	PLD1600-Ⅱ	PLD2400-Ⅱ	PLD3200-Ⅳ	PLD4800
Batching Accuracy	Aggregate(kg)	1500±2%	1500±2%	2500±2%	3000±2%	2000±2%	2000±2%
	Cement(kg)	300±1%	500±1%	500±1%	800±1%	1000±1%	1000±1%
	Water(kg)	150±1%	200±1%	200±1%	300±1%	500±1%	500±1%
	Additive(kg)	20±1%	20±1%	20±1%	30±1%	40±1%	40±1%
Discharging Height(m)		3.8	3.8	4.2	4.2	4.2	4.2
